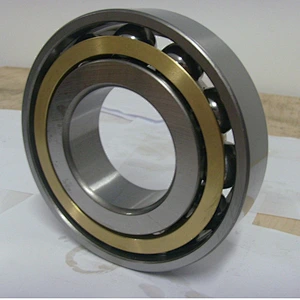

Single Row Angular Contact Ball Bearings

Model NO.: 7000
Delivery: EXW,FOB,CIF,EXPRESS
Supply Ability: 500000 set / Month
Country of Origin: China
Stock Time: 15-25 Days

Quantity:

Product Description

MBY® offers comprehensive ranges of angular contact ball bearings, which are available in:
– Single row and double row
– Open and sealed types
– Contact angle of 15, 30 or 40 degree
– Chrome steel, ceramic or hybrid materials
– Polyamide, steel and brass cage assemblies

Note：Swipe left or right to view the complete table!

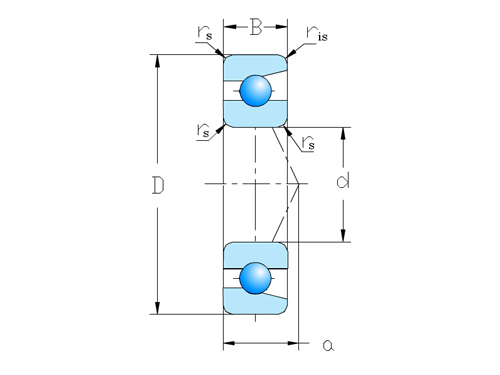

Bearing	Boundary Dimensions					BasiC load Rating				Limiting Speed		working	Shoulder			Mass
Designation2)	(mm)					( kN )				(rpm)		point	Dimensions			(kg)
												position	(mm)
						with Cutting Cage		with pressing Cage				(mm)	(mm)
	d	D	B	r	r1	Cr	Cor	Cr	Cor	Grease	Oil	a	da	Da	ra	Approx
	d	D	B	(min.)	(min.)	Cr	Cor	Cr	Cor	Grease	Oil	a	(min.)	(max.)	(max.)	Approx
7000	10	26	8	0.3	0.15	5	2.35	0	0	34000	42000	9.1	12.5	23.5	0.3	0.021
7000B	10	26	8	0.3	0.15	4.65	2.15	0	0	25000	33000	11.6	12.5	23.5	0.3	0.021
7000C	10	26	8	0.3	0.15	5.3	2.45	0	0	47000	62000	6.4	12.5	23.5	0.3	0.021
7001	12	28	8	0.3	0.15	5.4	2.75	0	0	29000	37000	9.9	14.5	25.5	0.3	0.024
7001B	12	28	8	0.3	0.15	4.95	2.5	0	0	22000	29000	12.6	14.5	25.5	0.3	0.024
7001C	12	28	8	0.3	0.15	5.8	2.95	0	0	40000	54000	6.7	14.5	25.5	0.3	0.024
7002	15	32	9	0.3	0.15	6.1	3.45	0	0	26000	32000	11.3	17.5	29.5	0.3	0.035
7002B	15	32	9	0.3	0.15	5.55	3.15	0	0	19000	25000	14.6	17.5	29.5	0.3	0.035
7002C	15	32	9	0.3	0.15	6.6	3.7	0	0	35000	47000	7.6	17.5	29.5	0.3	0.035
7003	17	35	10	0.3	0.15	6.75	4.15	0	0	23000	28000	12.7	19.5	32.5	0.3	0.045
7003B	17	35	10	0.3	0.15	6.1	3.75	0	0	17000	23000	16.1	19.5	32.5	0.3	0.045
7003C	17	35	10	0.3	0.15	7.3	4.45	0	0	31000	41000	8.6	19.5	32.5	0.3	0.045
7004	20	42	12	0.6	0.3	10.3	6.1	0	0	19000	24000	15.1	24.5	47.5	0.6	0.079
7004B	20	42	12	0.6	0.3	9.35	5.55	0	0	14000	19000	19.2	24.5	37.5	0.6	0.079
7004C	20	42	12	0.6	0.3	11.1	6.6	0	0	26000	35000	10.2	24.5	37.5	0.6	0.079
7005	25	47	12	0.6	0.3	11.3	7.4	0	0	17000	21000	16.4	29.5	42.5	0.6	0.091
7005B	25	47	12	0.6	0.3	10.2	6.7	0	0	12000	17000	21.1	29.5	42.5	0.6	0.091
7005C	25	47	12	0.6	0.3	12.3	9	0	0	23000	30000	10.8	29.5	42.5	0.6	0.091
7006	30	55	13	1	0.6	14.5	10.1	0	0	14000	18000	18.8	35.5	49.5	1	0.133
7006B	30	55	13	1	0.6	13.1	9.2	0	0	11000	14000	24.3	35.5	49.5	1	0.133
7006C	30	55	13	1	0.6	15.8	11	0	0	20000	26000	12.2	35.5	49.5	1	0.133
7007	35	62	14	1	0.6	17.5	12.6	0	0	12000	15000	21.2	40.5	56.5	1	0.17
7007B	35	62	14	1	0.6	15.8	11.4	0	0	9200	12000	27.6	40.5	56.5	1	0.17
7007C	35	62	14	1	0.6	19.1	13.7	0	0	17000	22000	13.5	40.5	56.5	1	0.17
7008	40	68	15	1	0.6	18.7	14.6	0	0	11000	14000	23.2	45.5	62.5	1	0.21
7008B	40	68	15	1	0.6	16.8	13.2	0	0	8300	11000	30.2	45.5	62.5	1	0.21
_7008C	40	68	15	1	0.6	20.5	15.9	0	0	15000	20000	14.8	45.5	62.5	1	0.21
7009	45	75	16	1	0.6	22.2	17.7	0	0	10000	12000	25.3	50.5	69.5	1	0.26
7009B	45	75	16	1	0.6	20	16	0	0	7500	10000	33.2	50.5	69.5	1	0.26
7009C	45	75	16	1	0.6	24.4	19.3	0	0	14000	18000	16	50.5	69.5	1	0.26
7010	50	80	16	1	0.6	23.6	20.1	0	0	9200	11000	26.9	55.5	74.5	1	0.29
7010B	50	80	16	1	0.6	21.2	18.1	0	0	6900	9200	35.3	55.5	74.5	1	0.29
7010C	50	80	16	1	0.6	26	21.9	0	0	13000	17000	16.8	55.5	74.5	1	0.29
7011	55	90	18	1.1	0.6	31.1	26.3	0	0	8300	10000	29.9	62	83	1	0.42
7011B	55	90	18	1.1	0.6	27.9	23.7	0	0	6200	8300	39.4	62	83	1	0.42
7011C	55	90	18	1.1	0.6	34.1	28.6	0	0	11000	15000	18.7	62	83	1	0.42
7012	60	95	18	1.1	0.6	31.9	28.1	0	0	7700	9700	31.4	67	88	1	0.45
7012B	60	95	18	1.1	0.6	28.6	25.3	0	0	5800	7700	41.5	67	88	1	0.45
7012C	60	95	18	1.1	0.6	35	30.6	0	0	11000	14000	19.4	67	88	1	0.45
7013	65	100	18	1.1	0.6	33.7	31.4	0	0	7200	9000	33	72	93	1	0.47
7013B	65	100	18	1.1	0.6	30.1	28.3	0	0	5400	7200	43.8	72	93	1	0.47
7013C	65	100	18	1.1	0.6	37.1	34.3	0	0	10000	13000	20.1	72	93	1	0.47
7014	70	110	20	1.1	0.6	42.7	39.4	0	0	6600	8300	36	77	103	1	0.66
7014B	70	110	20	1.1	0.6	38.3	35.5	0	0	5000	6600	47.8	77	103	1	0.66
7014C	70	110	20	1.1	0.6	46.9	43	0	0	9200	12000	22.1	77	103	1	0.66
7015	75	115	20	1.1	0.6	43.6	41.7	0	0	6300	7800	37.4	82	108	1	0.69
7015B	75	115	20	1.1	0.6	39.1	37.6	0	0	4700	6300	49.9	82	108	1	0.69
7015C	75	115	20	1.1	0.6	48	45.6	0	0	8700	11000	22.7	82	108	1	0.69
7016	80	125	22	1.1	0.6	53.4	50.6	0	0	5800	7200	40.6	87	118	1	0.93
7016B	80	125	22	1.1	0.6	47.8	45.7	0	0	4300	5800	54	87	118	1	0.93
7016C	80	125	22	1.1	0.6	58.7	55.3	0	0	8000	11000	24.7	87	118	1	0.93
7017	85	130	22	1.1	0.6	54.6	53.7	0	0	5500	6800	42.3	92	123	1	0.97
7017B	85	130	22	1.1	0.6	48.8	48.4	0	0	4100	5500	56.5	92	123	1	0.97
7017C	85	130	22	1.1	0.6	60.1	58.7	0	0	7600	10000	25.5	92	123	1	0.97
7018	90	140	24	1.5	1	65.2	63.3	0	0	5100	6400	45.2	98.5	131.5	1.5	1.26
7018B	90	140	24	1.5	1	58.4	57.1	0	0	3900	5100	60.2	98.5	131.5	1.5	1.26
7018C	90	140	24	1.5	1	71.7	69.1	0	0	7100	9400	27.4	98.5	131.5	1.5	1.26
7019	95	145	24	1.5	1	66.6	67.1	0	0	4800	6000	47.2	103.5	136.5	1.5	1.32
7019B	95	145	24	1.5	1	59.6	60.5	0	0	3600	4800	63.2	103.5	136.5	1.5	1.32
7019C	95	145	24	1.5	1	73.4	73.4	0	0	6700	8900	28.3	103.5	136.5	1.5	1.32
7020	100	150	24	1.5	1	67.4	70.6	0	0	4700	5900	48.1	108.5	141.5	1.5	1.37
7020B	100	150	24	1.5	1	61.2	63.6	0	0	3500	4700	64.4	108.5	141.5	1.5	1.37
7020C	100	150	24	1.5	1	75.3	77.2	0	0	6500	8600	28.7	108.5	141.5	1.5	1.37
7021	105	160	26	2	1	79.8	81.9	0	0	4400	5500	51.8	115	150	2	1.73
7021B	105	160	26	2	1	71.4	73.8	0	0	3300	4400	68.6	115	150	2	1.73
7021C	105	160	26	2	1	87.8	89.6	0	0	6000	8000	31	115	150	2	1.73
7022	110	170	28	2	1	91.9	92.8	0	0	4200	5200	54.4	120	160	2	2.14
7022B	110	170	28	2	1	82.3	83.7	0	0	3100	4200	72.7	120	160	2	2.14
7022C	110	170	28	2	1	101	101	0	0	5800	7700	32.8	120	160	2	2.14
7024	120	180	28	2	1	96.6	103	0	0	3900	4900	57.3	130	170	2	2.27
7024B	120	180	28	2	1	86.4	93	0	0	2900	3900	76.9	130	170	2	2.27
7024C	120	180	28	2	1	106	113	0	0	5400	7100	34.1	130	170	2	2.27
7200	10	30	9	0.6	0.3	4.65	2.2	5.4	2.75	29000	37000	10.4	14.5	25.5	0.6	0.031
7200B	10	30	9	0.6	0.3	4.3	2	4.95	2.5	22000	29000	13.1	14.5	25.5	0.6	0.031
7200C	10	30	9	0.6	0.3	5	2.35	5.8	2.95	40000	54000	7.2	14.5	25.5	0.6	0.031
7201	12	32	10	0.6	0.3	7.45	3.65	8	4.05	27000	34000	11.4	16.5	27.5	0.6	0.038
7201B	12	32	10	0.6	0.3	6.95	3.4	7.4	3.75	20000	27000	14.2	16.5	27.5	0.6	0.038
7201C	12	32	10	0.6	0.3	7.9	3.85	8.5	4.3	38000	50000	7.9	16.5	27.5	0.6	0.038
7202	15	35	11	0.6	0.3	8.1	4.25	8.1	4.25	24000	29000	12.9	19.5	30.5	0.6	0.048
7202B	15	35	11	0.6	0.3	7.45	3.95	7.45	3.95	18000	24000	16.2	19.5	30.5	0.6	0.048
7202C	15	35	11	0.6	0.3	8.65	4.55	8.65	4.55	33000	43000	8.9	19.5	30.5	0.6	0.048
7203	17	40	12	0.6	0.3	10.2	5.5	10.2	5.5	21000	26000	14.4	21.5	35.5	0.6	0.07
7203B	17	40	12	0.6	0.3	9.35	5.05	9.35	5.05	16000	21000	18.2	21.5	35.5	0.6	0.07
7203C	17	40	12	0.6	0.3	10.9	5.9	10.9	5.9	29000	38000	9.9	21.5	35.5	0.6	0.07
7204	20	47	14	1	0.6	14.5	8.4	15.4	9.15	17000	22000	17	25.5	41.5	1	0.112
7204B	20	47	14	1	0.6	13.3	7.7	14.1	8.4	13000	17000	21.5	25.5	41.5	1	0.112
7204C	20	47	14	1	0.6	15.5	9	16.5	9.8	24000	32000	11.6	25.5	41.5	1	0.112
7205	25	52	15	1	0.6	15.3	9.5	16.2	10.3	15000	19000	18.8	30.5	46.5	1	0.135
7205B	25	52	15	1	0.6	14	8.7	14.7	9.4	12000	15000	23.9	30.5	46.5	1	0.135
7205C	25	52	15	1	0.6	16.6	10.2	17.5	11.1	21000	28000	12.7	30.5	46.5	1	0.135
7206	30	62	16	1	0.6	21.3	13.7	22.5	14.8	13000	16000	21.5	35.5	56.5	1	0.208
7206B	30	62	16	1	0.6	19.4	12.5	20.5	13.6	9600	13000	27.6	35.5	56.5	1	0.208
7206C	30	62	16	1	0.6	23	14.7	24.3	16	18000	24000	14.3	35.5	56.5	1	0.208
7207	35	72	17	1.1	0.6	28.1	18.6	29.7	20.2	11000	14000	24.2	42	65	1	0.295
7207B	35	72	17	1.1	0.6	25.6	17	27	18.5	8300	11000	31.4	42	65	1	0.295
7207C	35	72	17	1.1	0.6	30.4	20.1	32.1	21.7	15000	20000	15.8	42	65	1	0.295
7208	40	80	18	1.1	0.6	33.6	23.3	35.3	25.1	10000	12000	26.3	47	73	1	0.382
7208B	40	80	18	1.1	0.6	30.6	21.3	32.1	23	7500	10000	34.2	47	73	1	0.382
7208C	40	80	18	1.1	0.6	36.4	25.2	38.2	27.1	14000	18000	17	47	73	1	0.382
7209	45	85	19	1.1	0.6	37.7	26.6	39.6	28.6	9400	12000	28	52	78	1	0.43
7209B	45	85	19	1.1	0.6	34.3	24.3	36.1	26.1	7000	9400	36.4	52	78	1	0.43
7209C	45	85	19	1.1	0.6	40.8	28.7	42.9	30.9	13000	17000	18.1	52	78	1	0.43
7210	50	90	20	1.1	0.6	39.4	29.4	41.3	31.5	8500	11000	30.4	57	83	1	0.485
7210B	50	90	20	1.1	0.6	35.7	26.7	37.4	28.6	6400	8500	39.6	57	83	1	0.485
7210C	50	90	20	1.1	0.6	42.8	31.8	44.8	34.1	12000	16000	19.4	57	83	1	0.485
7211	55	100	21	1.5	1	48.7	37.1	51	39.8	7600	9500	33.3	63.5	91.5	1.5	0.635
7211B	55	100	21	1.5	1	44.1	33.8	46.2	36.2	5700	7600	43.6	63.5	91.5	1.5	0.635
7211C	55	100	21	1.5	1	52.9	40.2	55.4	43.1	11000	14000	21.1	63.5	91.5	1.5	0.635
7212	60	110	22	1.5	1	58.9	45.7	61.7	49	6900	8600	36.1	68.5	101.5	1.5	0.82
7212B	60	110	22	1.5	1	53.4	41.6	55.9	44.6	5100	6900	47.5	68.5	101.5	1.5	0.82
7212C	60	110	22	1.5	1	64	49.5	67	53	9500	13000	22.7	68.5	101.5	1.5	0.82
7213	65	120	23	1.5	1	67.3	54.2	70.2	57.8	6400	8000	38.2	73.5	111.5	1.5	1.02
7213B	65	120	23	1.5	1	60.9	49.2	63.6	52.6	4800	6400	50.3	73.5	111.5	1.5	1.02
7213C	65	120	23	1.5	1	73.1	58.7	76.3	62.6	8900	12000	23.9	73.5	111.5	1.5	1.02
7214	70	125	24	1.5	1	69.8	55.6	76.3	63.5	6100	7600	40.2	78.5	116.5	1.5	1.12
7214B	70	125	24	1.5	1	63.2	50.6	69.1	57.8	4600	6100	52.9	78.5	116.5	1.5	1.12
7214C	70	125	24	1.5	1	75.9	60.2	83	68.8	8400	11000	25.1	78.5	116.5	1.5	1.12
7215	75	130	25	1.5	1	79.2	65.2	82.7	69.5	5800	7200	42.1	83.5	121.5	1.5	1.23
7215B	75	130	25	1.5	1	71.7	59.3	74.9	63.3	4300	5800	55.5	83.5	121.5	1.5	1.23
7215C	75	130	25	1.5	1	86.1	70.6	89.9	75.3	8000	11000	26.2	83.5	121.5	1.5	1.23
7216	80	140	26	2	1	85.3	71.5	89	76.2	5400	6700	44.8	90	130	2	1.5
7216B	80	140	26	2	1	77.1	65	80.5	69.3	4000	5400	59.2	90	130	2	1.5
7216C	80	140	26	2	1	92.8	77.5	96.9	82.7	7500	9900	27.7	90	130	2	1.5
7217	85	150	28	2	1	98.6	83.6	103	89.2	5000	6300	47.9	95	140	2	1.87
7217B	85	150	28	2	1	89.2	76	93.1	81.1	3800	5000	63.3	95	140	2	1.87
7217C	85	150	28	2	1	107	90.6	112	96.6	7000	9200	29.7	95	140	2	1.87
7218	90	160	30	2	1	113	96.7	118	103	4700	5900	51.1	100	150	2	2.3
7218B	90	160	30	2	1	102	88	107	93.8	3500	4700	67.4	100	150	2	2.3
7218C	90	160	30	2	1	123	105	128	112	6500	8600	31.7	100	150	2	2.3
7219	95	170	32	2.1	1.1	122	103	128	111	4400	5500	54.3	107	158	2	2.78
7219B	95	170	32	2.1	1.1	111	94	116	101	3300	4400	71.6	107	158	2	2.78
7219C	95	170	32	2.1	1.1	133	112	139	120	6100	8100	33.8	107	158	2	2.78
7220	100	180	34	2.1	1.1	137	117	144	126	4100	5200	57.7	112	168	2	3.32
7220B	100	180	34	2.1	1.1.	124	107	130	115	3100	4200	76.2	112	168	2	3.32
7220C	100	180	34	2.1	1.1	149	127	156	136	5700	7600	35.9	112	168	2	3.32
7221	105	190	36	2.1	1.1	149	132	0	0	3900	4900	61	117	178	2	3.95
7221B	105	190	36	2.1	1.1	135	121	0	0	2900	3900	80.5	117	178	2	3.95
7221C	105	190	36	2.1	1.1	162	143	0	0	5400	7200	38	117	178	2	3.95
7222	110	200	38	2.1	1.1	162	148	0	0	3700	4600	64.3	122	188	2	4.65
7222B	110	200	38	2.1	1.1	147	135	0	0	2800	3700	84.9	122	188	2	4.65
7222C	110	200	38	2.1	1.1	176	160	0	0	5100	6800	40	122	188	2	4.65
7224	120	215	40	2.1	1.1	174	166	0	0	3400	4300	68.5	132	203	2	5.49
7224B	120	215	40	2.1	1.1	158	151	0	0	2600	3400	90.3	132	203	2	5.49
7224C	120	215	40	2.1	1.1	190	180	0	0	4800	6300	42.5	132	203	2	5.49
7300	10	35	11	0.6	0.3	8.5	3.75	9.3	4.3	27000	33000	12	14.5	30.5	0.6	0.054
7301	12	37	12	1	0.6	10.2	4.6	11.2	5.25	24000	31000	13.1	17.5	31.5	1	0.065
7302	15	42	13	1	0.6	12.5	6.45	13.4	7.2	20000	25000	15	20.5	36.5	1	0.088
7303	17	47	14	1	0.6	14.9	7.9	16	8.75	18000	23000	16.5	22.5	41.5	1	0.12
7303B	17	47	14	1	0.6	13.8	7.3	14.8	8.1	14000	18000	20.8	22.5	41.5	1	0.12
7303C	17	47	14	1	0.6	15.8	8.4	15.8	8.4	25000	33000	11.4	22.5	41.5	1	0.12
7304	20	52	15	1.1	0.6	17.4	9.4	18.7	10.4	17000	21000	17.9	27	45	1	0.15
7304B	20	52	15	1.1	0.6	16.2	8.7	17.3	9.65	13000	17000	22.6	27	45	1	0.15
7304C	20	52	15	1.1	0.6	18.5	9.95	19.9	11.1	23000	31000	12.3	27	45	1	0.15
7305	25	62	17	1.1	0.6	24.8	14.4	26.4	15.8	14000	17000	21.1	32	55	1	0.243
7305B	25	62	17	1.1	0.6	22.9	13.3	24.4	14.6	10000	14000	26.8	32	55	1	0.243
7305C	25	62	17	1.1	0.6	26.4	15.3	28.1	16.8	19000	25000	14.3	32	55	1	0.243
7306	30	72	19	1.1	0.6	30.1	18.9	31.9	20.6	12000	14000	24.5	37	65	1	0.362
7306B	30	72	19	1.1	0.6	27.6	17.4	29.3	19	8700	12000	31.3	37	65	1	0.362
7306C	30	72	19	1.1	0.6	32.3	20.3	34.2	22.1	16000	21000	16.5	37	65	1	0.362
7307	35	80	21	1.5	1	35.4	22	39.9	26.4	10000	13000	27.4	43.5	71.5	1.5	0.475
7307B	35	80	21	1.5	1	32.5	20.2	36.6	24.3	7700	10000	35	43.5	71.5	1.5	0.475
7307C	35	80	21	1.5	1	37.9	23.6	42.8	28.3	14000	19000	18.3	43.5	71.5	1.5	0.475
7308	40	90	23	1.5	1	43.2	27.4	44.8	32.9	9200	12000	30.3	48.5	81.5	1.5	0.657
7308B	40	90	23	1.5	1	39.7	25.2	48.8	30.3	6900	9200	38.8	48.5	81.5	1.5	0.657
7308C	40	90	23	1.5	1	46.3	29.4	52.3	35.3	13000	17000	20.2	48.5	81.5	1.5	0.657
7309	45	100	25	1.5	1	55.1	37.1	58.4	40.4	8200	10000	33.6	53.5	91.5	1.5	0.875
7309B	45	100	25	1.5	1	50.6	34.1	53.6	37.2	6200	8200	43.1	53.5	91.5	1.5	0.875
7309C	45	100	25	1.5	1	59.2	39.7	62.7	43.4	11000	15000	22.3	53.5	91.5	1.5	0.875
7310	50	110	27	2	1	70.1	48.1	74.3	52.5	7300	9100	37.2	60	100	2	1.14
7310B	50	110	27	2	1	64.4	44.3	68.2	48.3	5500	7300	47.9	60	100	2	1.14
7310C	50	110	27	2	1	75.1	51.6	79.6	56.2	10000	13000	24.5	60	100	2	1.14
7311	55	120	29	2	1	80.9	56.5	85.8	61.7	6700	8400	40.2	65	110	2	1.45
7311B	55	120	29	2	1	74.3	52	78.7	56.7	5000	6700	51.8	65	110	2	1.45
7311C	55	120	29	2	1	86.8	60.6	91.9	66.1	9300	12000	26.4	65	110	2	1.45
7312	60	130	31	2.1	1.1	92.5	65.6	98.1	71.6	6200	7700	43.2	72	118	2	1.81
7312B	60	130	31	2.1	1.1	84.9	60.3	90	65.8	4600	6200	55.8	72	118	2	1.81
7312C	60	130	31	2.1	1.1	99.2	70.3	105	76.7	8600	11000	28.4	72	118	2	1.81
7313	65	140	33	2.1	1.1	105	75.3	111	82.2	5800	7200	46.3	77	128	2	2.22
7313B	65	140	33	2.1	1.1	96.1	69.3	102	75.6	4300	5800	59.7	77	128	2	2.22
7313C	65	140	33	2.1	1.1	112	80.7	119	88.1	8000	11000	30.3	77	128	2	2.22
7314	70	150	35	2.1	1.1	118	85.8	125	93.6	5400	6700	49.3	82	138	2	2.7
7314B	70	150	35	2.1	1.1	108	78.9	114	86	4000	5400	63.7	82	138	2	2.7
7314C	70	150	35	2.1	1.1	126	91.9	134	100	7500	9900	32.2	82	138	2	2.7
7315	75	160	37	2.1	1.1	128	97	136	106	5000	6300	52.4	87	148	2	3.15
7315B	75	160	37	2.1	1.1	118	89.2	125	97.3	3800	5000	67.8	87	148	2	3.15
7315C	75	160	37	2.1	1.1	137	104	146	113	7000	9200	34.2	87	148	2	3.15
7316	80	170	39	2.1	1.1	139	109	147	119	4700	5900	55.6	92	158	2	3.85
7316B	80	170	39	2.1	1.1	127	100	135	109	3500	4700	71.9	92	158	2	3.85
7316C	80	170	39	2.1	1.1	149	117	158	127	6500	8600	36.2	92	158	2	3.85
7317	85	180	41	3	1.1	150	122	159	133	4400	5500	58.8	99	166	2.5	4.53
7317B	85	180	41	3	1.1	137	112	145	122	3300	4400	76.1	99	166	2.5	4.53
7317C	85	180	41	3	1.1	161	130	170	142	6100	8100	38.3	99	166	2.5	4.53
7318	90	190	43	3	1.1	161	135	171	147	4200	5200	61.9	104	176	2.5	5.3
7318B	90	190	43	3	1.1	148	124	156	135	3100	4200	80.2	104	176	2.5	5.3
7318C	90	190	43	3	1.1	173	145	183	158	5800	7700	40.3	104	176	2.5	5.3
7319	95	200	45	3	1.1	172	149	183	162	4000	4900	65.1	109	186	2.5	6.12
7319B	95	200	45	3	1.1	158	137	167	149	3000	4000	84.4	109	186	2.5	6.12
7319C	95	200	45	3	1.1	185	160	196	174	5500	7300	42.3	109	186	2.5	6.12
7320	100	215	47	3	1.1	184	161	207	194	3600	4600	69.4	114	201	2.5	7.53
7320B	100	215	47	3	1.1	168	148	190	178	2700	3600	90.2	114	201	2.5	7.53
7320C	100	215	47	3	1.1	197	173	222	208	5000	6700	44.8	114	201	2.5	7.53
7321	105	225	49	3	1.1	208	193	0	0	3500	4400	72.1	119	211	2.5	8.62
7321B	105	225	49	3	1.1	191	177	0	0	2600	3500	93.7	119	211	2.5	8.62
7321C	105	225	49	3	1.1	223	207	0	0	4800	6400	46.6	119	211	2.5	8.62
7322	110	240	50	3	1.1	232	226	0	0	3200	4000	76.4	124	226	2.5	10.1
7322B	110	240	50	3	1.1	213	208	0	0	2400	3200	99.6	124	226	2.5	10.1
7322C	110	240	50	3	1.1	249	242	0	0	4500	5900	48.8	124	226	2.5	10.1
7324	120	260	55	3	1.1	246	252	0	0	3000	3700	82.3	134	246	2.5	12.6
7324B	120	260	55	3	1.1	225	231	0	0	2200	3000	107.2	134	246	2.5	12.6
7324C	120	260	55	3	1.1	265	271	0	0	4100	5500	53	134	246	2.5	12.6
7404	20	72	19	1.1	0.6	35.6	19.1	0	0	9600	13000	23.1	27	65	1	0.395
7404C	20	72	19	1.1	0.6	33.5	17.9	0	0	8500	12000	29.2	27	65	1	0.395
7405	25	80	21	1.5	1	39.7	23.2	42.6	25.7	8200	11000	28.4	33.5	71.5	1.5	0.527
7405B	25	80	21	1.5	1	36.9	21.5	39.6	23.9	7300	10000	33.6	33.5	71.5	1.5	0.527
7406	30	90	23	1.5	1	47.6	28.4	51	31.6	7300	9700	29.3	38.5	81.5	1.5	0.686
7406B	30	90	23	1.5	1	44.2	26.4	47.4	29.3	6500	8900	37.3	38.5	81.5	1.5	0.686
7407	35	100	25	1.5	1	60.4	37	64.8	41.1	6500	8600	32.6	43.5	91.5	1.5	0.95
7407B	35	100	25	1.5	1	56.2	34.3	60.2	38.1	5700	7900	41.7	43.5	91.5	1.5	0.95
7408	40	110	27	2	1	69.9	43.5	75	48.4	5900	7900	35.5	50	100	2	1.23
7408B	40	110	27	2	1	64.9	40.4	69.6	44.9	5200	7200	45.4	50	100	2	1.23
7409	45	120	29	2	1	84.9	53.8	91.1	59.8	5400	7100	38.6	55	110	2	1.55
7409B	45	120	29	2	1	78.9	50	84.7	55.5	4800	6600	49.5	55	110	2	1.55
7410	50	130	31	2.1	1.1	97.4	65.3	0	0	4900	6600	41.6	62	118	2	1.92
7410B	50	130	31	2.1	1.1	90.2	60.4	0	0	4400	6000	53.5	62	118	2	1.92
7411	55	140	33	2.1	1.1	118	52.4	0	0	4500	6000	45	67	128	2	2.36
7411B	55	140	33	2.1	1.1	110	76.5	0	0	4000	5500	57.8	67	128	2	2.36
7412	60	150	35	2.1	1.1	129	93.6	0	0	4100	5500	48.5	72	138	2	2.85
7412B	60	150	35	2.1	1.1	119	86.7	0	0	3700	5100	62.6	72	138	2	2.85
7413	65	160	37	2.1	1.1	139	104	0	0	3900	5200	51.4	77	148	2	3.41
7413B	65	160	37	2.1	1.1	129	96.8	0	0	3500	4800	66.3	77	148	2	3.41
7414	70	180	42	3	1.1	149	115	0	0	3500	4600	57.6	84	166	2.5	4.99
7414B	70	180	42	3	1.1	148	119	0	0	3100	4300	74.2	84	166	2.5	4.99
7415	75	190	45	3	1.1	171	141	0	0	3300	4400	61.3	89	176	2.5	5.9
7415B	75	190	45	3	1.1	158	131	0	0	2900	4000	78.9	89	176	2.5	5.9
7416	80	200	48	3	1.1	193	166	0	0	3100	4100	65	94	186	2.5	6
7416B	80	200	48	3	1.1	179	154	0	0	2700	3800	82.6	94	186	2.5	6
7417	85	210	52	4	1.5	204	180	0	0	3000	3900	68.7	103	192	3	8.54
7417B	85	210	52	4	1.5	189	167	0	0	2600	3600	88.1	103	192	3	8.54
7418	90	225	54	4	1.5	216	196	0	0	2800	3700	72.5	108	207	3	11.4
7418B	90	225	54	4	1.5	200	182	0	0	2500	3400	93.1	108	207	3	11.4
7900C	10	22	6	0.3	0.15	3	1.5	0	0	52000	69000	5.1	12.5	19.5	0.3	0.008
7901C	12	24	6	0.3	0.15	3.2	1.7	0	0	48000	62000	5.4	14.5	21.5	0.3	0.01
7902C	15	28	7	0.3	0.15	4.75	2.65	0	0	39000	52000	6.4	17.5	25.5	0.3	0.015
7903C	17	30	7	0.3	0.15	4.35	2.3	0	0	36000	47000	6.7	19.5	27.5	0.3	0.016
7904C	20	37	9	0.3	0.15	7.3	4.55	0	0	30000	39000	8.3	22.5	34.5	0.3	0.035
7905C	25	42	9	0.3	0.15	7.8	5.45	0	0	25000	33000	9.1	27.5	39.5	0.3	0.041
7906C	30	47	9	0.3	0.15	8.3	6.25	0	0	22000	29000	9.7	32.5	44.5	0.3	0.046
7907C	35	55	10	0.6	0.3	12.5	9.7	0	0	19000	25000	11	40	50	0.6	0.074
7908C	40	62	12	0.6	0.3	15.7	12.4	0	0	17000	22000	12.8	45	57	0.6	0.107
7909C	45	68	12	0.6	0.3	16.6	14.1	0	0	15000	20000	13.6	50	63	0.6	0.127
7910C	50	72	12	0.6	0.3	17.4	15.7	0	0	14000	18000	14.2	55	67	0.6	0.128
7911C	55	80	13	1	0.6	19.7	18.5	0	0	13000	17000	15.5	61	74	1	0.178
7912C	60	85	13	1	0.6	23.2	21.8	0	0	12000	16000	16.3	66	79	1	0.187
7913C	65	90	13	1	0.6	20.8	21.2	0	0	11000	15000	16.9	71	84	1	0.205
7914C	70	100	16	1	0.6	29	28.9	0	0	10000	12000	19.4	76	94	1	0.332
7915	75	105	16	1	0.6	29.4	30.5	0	0	9300	12000	20.1	81	99	1	0.35
7916C	80	110	16	1	0.6	29.8	31.6	0	0	8800	11000	20.7	86	104	1	0.368
7917C	85	120	18	1.1	0.6	38.9	40.6	0	0	8100	11000	22.7	92	113	1	0.523
7918C	90	125	18	1.1	0.6	39.6	42.6	0	0	7800	10000	23.4	97	118	1	0.551
7919C	95	130	18	1.1	0.6	40.2	44.1	0	0	7400	9800	24.1	102	123	1	0.574
7920C	100	140	20	1.1	0.6	55.6	58.5	0	0	7000	9200	26.1	107	133	1	0.773
7921C	105	145	20	1.1	0.6	56.7	61.5	0	0	6700	8800	26.7	112	138	1	0.81
7922C	110	150	20	1.1	0.6	57.7	64.4	0	0	6400	8500	27.4	117	143	1	0.84
7924C	120	165	22	1.1	0.6	71.7	81.2	0	0	5900	7800	30.1	127	158	1	1.15
ACH006C	30	55	13	1	0.6	12.6	9.55	0	0	20000	26000	12.2	36	49	1	0.122
ACH007C	35	62	14	1	0.6	13.3	10.9	0	0	18000	23000	13.5	41	56	1	0.162
ACH008C	40	68	15	1	0.6	13.9	12.2	0	0	16000	21000	14.7	46	62	1	0.203
ACH009C	45	75	16	1	0.6	15.5	14	0	0	14000	19000	16	51	69	1	0.258
ACH010C	50	80	16	1	0.6	16.1	15.5	0	0	13000	17000	16.7	56	74	1	0.279
ACH011C	55	90	18	1.1	0.6	20	19.5	0	0	12000	16000	18.7	62	83	1	0.413
ACH012C	60	95	18	1.1	0.6	20.8	21.2	0	0	11700	15000	19.4	67	88	1	0.442
ACH013C	65	100	18	1.1	0.6	21.5	22.6	0	0	10100	14000	20	72	93	1	0.471
ACH014C	70	110	20	1.1	0.6	29.4	30.5	0	0	9300	13000	22.1	77	103	1	0.642
ACH015C	75	115	20	1.1	0.6	29.8	31.6	0	0	8800	12000	22.7	82	108	1	0.677
ACH016C	80	125	22	1.1	0.6	34.9	37.7	0	0	8100	11000	24.7	87	118	1	0.915
ACH017C	85	130	22	1.1	0.6	35.4	38.9	0	0	7800	10000	25.4	92	123	1	0.959
ACH018C	90	140	24	1.5	1	46.5	51.3	0	0	7300	9600	27.4	98.5	131.5	1.5	1.23
ACH019C	95	145	24	1.5	1	47.2	53.2	0	0	7000	9200	28.1	103.5	136.5	1.5	1.28
ACH020C	100	150	24	1.5	1	47.9	54.9	0	0	6700	8800	28.7	108.5	141.5	1.5	1.34
ACH021C	105	160	26	2	1	54.4	63.1	0	0	6300	8300	30.7	115	150	2	1.7
ACH022C	110	170	28	2	1	61.3	71.9	0	0	6000	7900	32.7	120	160	2	2.13
ACH024C	120	180	28	2	1	63.1	76.5	0	0	5600	7400	34.1	130	170	2	2.29
ACH910C	50	72	12	0.6	0.3	13.2	12.8	0	0	14000	18000	14.2	55	67	0.6	0.139
ACH911C	55	80	13	1	0.6	14.2	14.6	0	0	13000	17000	15.5	61	74	1	0.195
ACH912C	60	85	13	1	0.6	13.9	14.5	0	0	12000	16000	16.2	66	79	1	0.209
ACH913C	65	90	13	1	0.6	14.3	15.4	0	0	11000	15000	16.9	71	84	1	0.223
ACH914C	70	100	16	1	0.6	18	19.5	0	0	10000	12000	19.4	76	94	1	0.369
ACH915C	75	105	16	1	0.6	18.5	20.7	0	0	9300	12000	20.1	81	99	1	0.391
ACH916C	80	110	16	1	0.6	18.9	21.8	0	0	8800	11000	20.7	86	104	1	0.412
ACH917C	85	120	18	1.1	0.6	22.7	26.1	0	0	8100	11000	22.7	92	113	1	0.586
ACH918C	90	125	18	1.1	0.6	23.3	27.6	0	0	7800	10000	23.4	97	118	1	0.615
ACH919C	95	130	18	1.1	0.6	23.9	29.1	0	0	7400	9800	24.1	102	123	1	0.644
ACH920C	100	140	20	1.1	0.6	33.7	40.4	0	0	7000	9200	26.1	107	133	1	0.869
ACH921C3	105	145	20	1.1	0.6	34.6	42.6	0	0	6700	8800	26.7	112	138	1	0.907
ACH922C	110	150	20	1.1	0.6	34.9	43.7	0	0	6400	8500	27.4	117	143	1	0.942
ACH924C	120	165	22	1.1	0.6	40.8	51.9	0	0	5900	7800	30.1	127	158	1	1.29
